Custom products
Taking the ideas in my head and making them real is one of the things that excites me most. Whether it's a cool piece of gear or a new answer to an old problem, I'll do my best to make it happen. I'm not trying to compete with the big manufacturers: I make less, tailor it to what you need and build it with care.

SL613E test jig →
Tests every function of a single SSL channel, with no console needed.

Neve VR test jig →
Powers up a single Neve V Series channel away from the console, so every input and output can be tested quickly.
Ampex ATR-100 replacement cards →
New replacement cards for the ATR-100. The first prototype, card 7, is already running on a machine.

3M M79 test jig →
Powers up a 3M M79 audio card on the bench, allowing you to test all its inputs and outputs.

SSL SL691 computer replica →
A replica of the SL691, the studio computer of the SSL 4000, running the same code as the original in a virtual machine.
Scully 280 Activator
The Scully 280 comes factory equipped with mic and line inputs but no additional features. This unit expands its functionality by adding relay switched phantom power, pad and phase options to both inputs.
It also includes a toggle that routes the signal exclusively to either the mic or line input, preventing the signal loss that normally occurs when feeding both at once.
NTP 179-400 cutting limiters
This is a pair of Siemens V275 modules, originally from the summing section of a console. I've racked them with a custom linear power supply and added a pad before and after the amplifier, making it possible to explore the different types of distortion the unit can produce.
Siemens V275 line amplifier
This is a pair of Siemens V275 modules, originally from the summing section of a console. I've racked them with a custom linear power supply and added a pad before and after the amplifier, making it possible to explore the different types of distortion the unit can produce.
Tools and personal builds
Studer output amp testing rig
A testing rig built for working on Studer tape machine output amps.
Microphone testing rig
A dedicated rig for testing microphones, built at the end of 2025.
Roetest 11 tube curve tracer
A fully computer controlled curve tracer tube tester, built from the Roetest 11 and custom housed in a rack to streamline my work with tube equipment.
It handles up to 600 V on the plate and is compatible with virtually every tube type in existence, giving the detailed curve measurements only a true curve tracer can deliver. It is an essential tool for my tube work and can even test rare tubes like the VF14 and AC701.

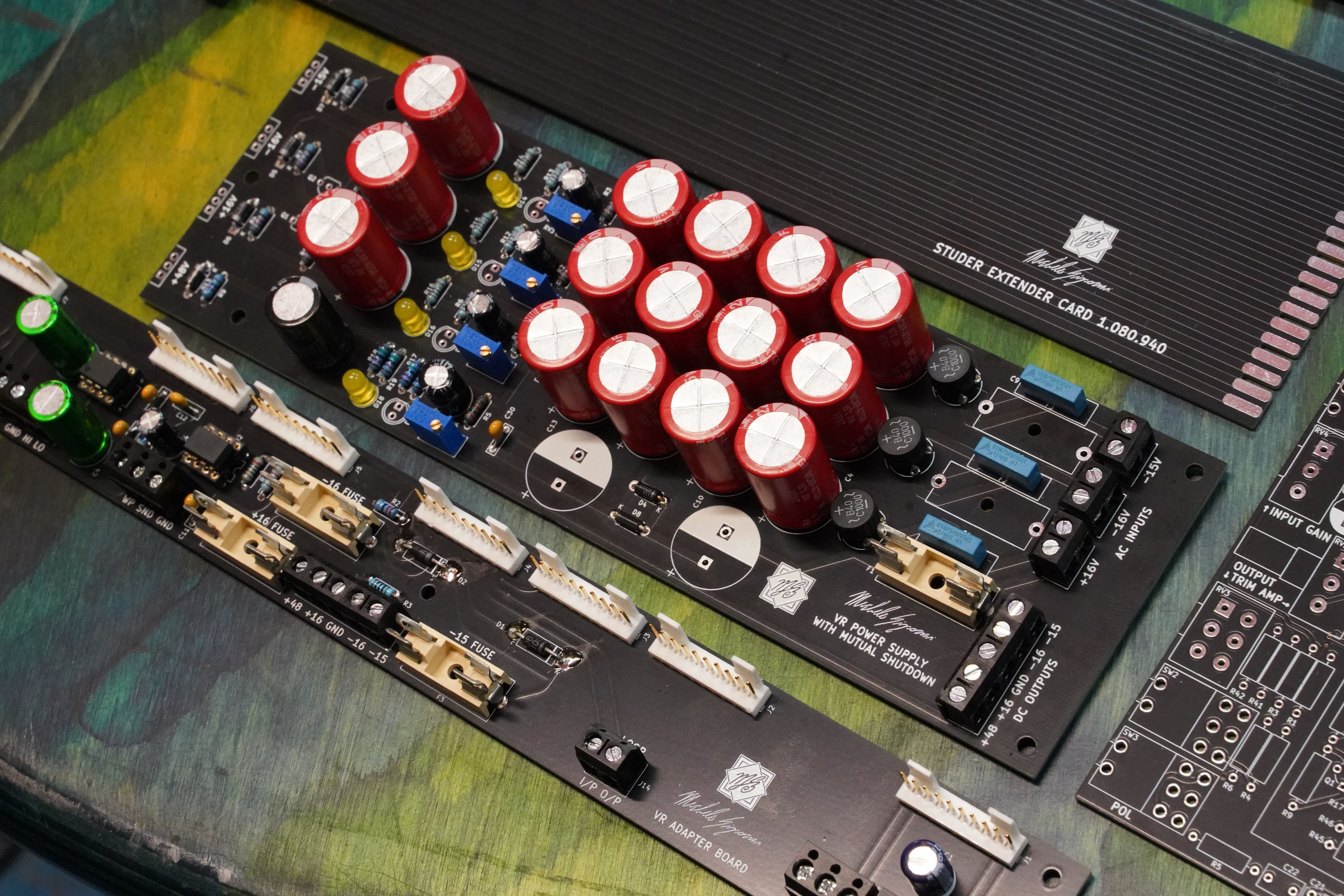

Custom boards for every project
I design a dedicated PCB for each project, so every circuit is tailored to the exact features it needs and fully optimised for the dimensions and specification of the unit. Once finalised, the circuits are built on professionally manufactured boards.

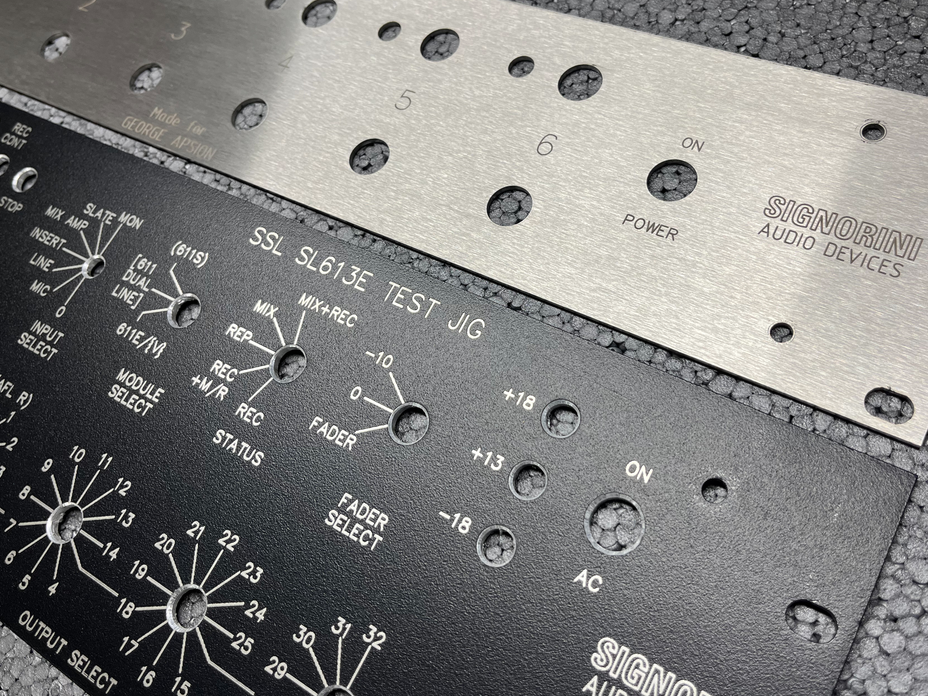

Custom front panels
Each project comes with a custom designed front panel in stainless steel or aluminium. Panels can be screen printed or laser etched in any colour to match the design.

Design philosophy
I want to build things the way they used to be built, with care, durability and respect for the craft: modular, serviceable and made with quality parts, like the legendary equipment that was built like a tank, so that everything I make stands the test of time.
